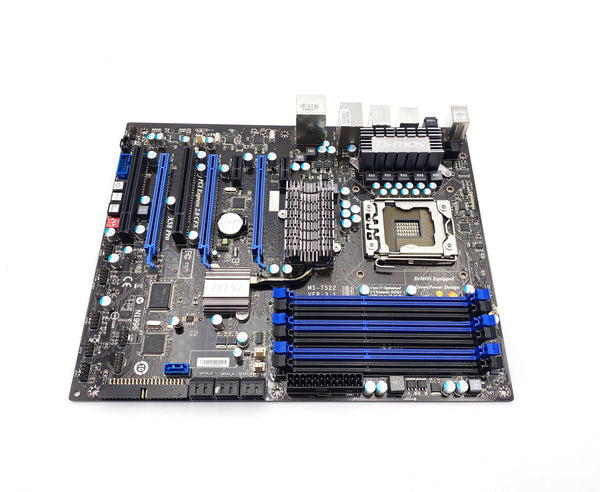

Bulkware, neu unbenutzt. Keine OVP und kein Socket Deckel im Lieferumfang

Lieferumfang: Mainboard, Blende


CPU

• Supports Intel® i7 based processors in LGA1366 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Intel® X58 Chipset
- Supports QPI up to 6.4GT/s

• Intel® ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.

Main Memory

• Supports six unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333*/1600* (OC) DRAM, 24GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size

- Supports x8 / x16 data lines per DIMM
- Supports up to 3 channel mode


Slots

• 3 PCI Express gen2 x16 slots
- two dark Blue PCIE x16 slots (PCI_E2 &PCI_E4) support up to PCIE x16 speed, one Blue PCIE x16 slot(PCI_ E5) supports up to PCIE x4 speed
- supports ATI® Crossfire™
• 2 PCI Express gen1 x1 slots
• 2 PCI slot, support 3.3V/ 5V PCI bus Interface



On-Board IDE/SATA

• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH10R/JMicron® 363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R (SATA1~6)
- Supports one SATAII port by JMicron 363 (SATA7)
- Supports one eSATA port by JMicron 363.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• Chipset integrated by Realtek® ALC889
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec



LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.




IEEE1394 / FireWire

• JMicron® 381 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System x 3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x serial port pinheader
- 3 x USB 2.0 connectors
- 7 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x Reset Button
- 1 x Power Button
- 1 x Clear CMOS Button
- 1 x SPDIF-out connector
- 1 x TPM module connector
